GH08L

  • OVER VIEW
  • FEATURES
  • BALANCE CHART
  • TECH SPEC
  • DOWNLOADS
  • RECOMMENDED ACCESSORIES
  • RECOMMENDED KITS

Over view

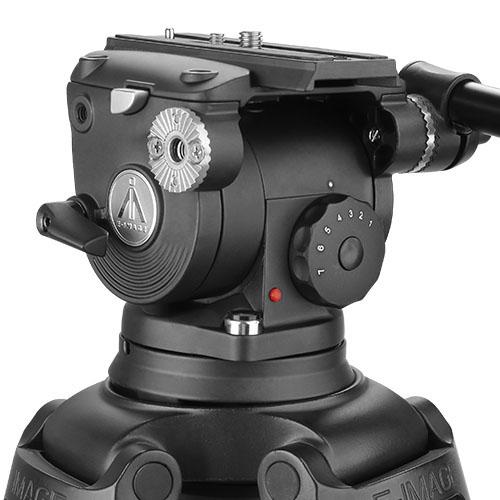

The GH08L head is specially designed for supporting handheld size of DV, DVCAM, HVX and HDV camcorders. It features a quick release sliding balance plate system for attaching the camera to the head. It provides 7 counterbalance settings that helps the fluid head support loads up to 8kg (18lbs). It features with fixed drag on both pan and tilt. The head features a built in 1/4"-20 & 3/8"-16 accessory socket for available monitor support arms or other accessory items. It has self-illuminated touch bubbles for easy leveling in poor light conditions. With standard 100mm bowl, the heads could be equipped with all 100mm bowl size legs.

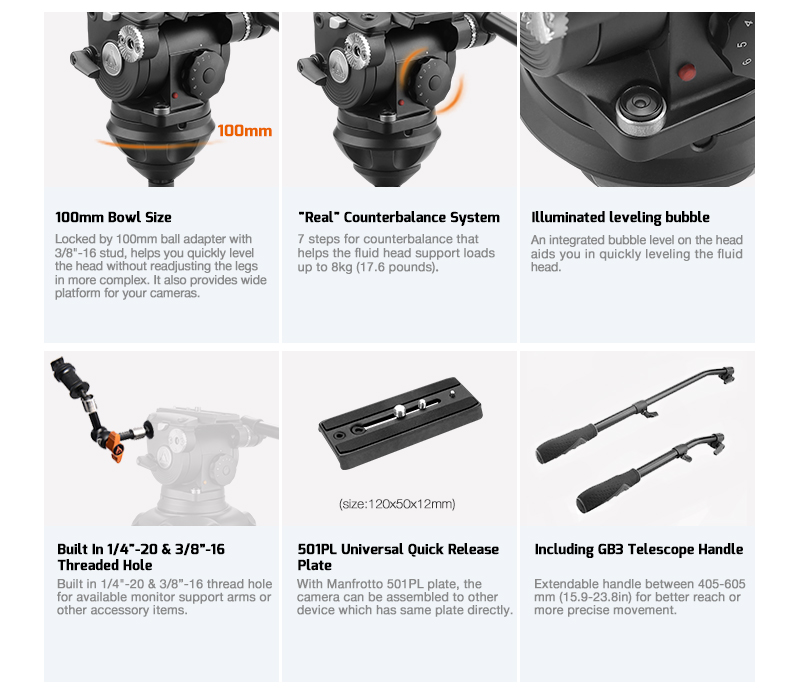

Features

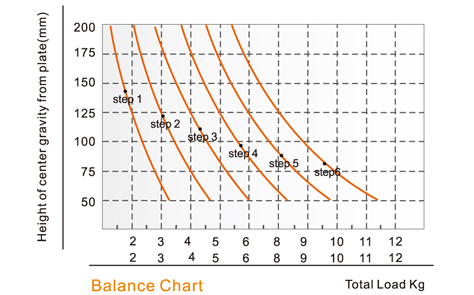

Balance Chart

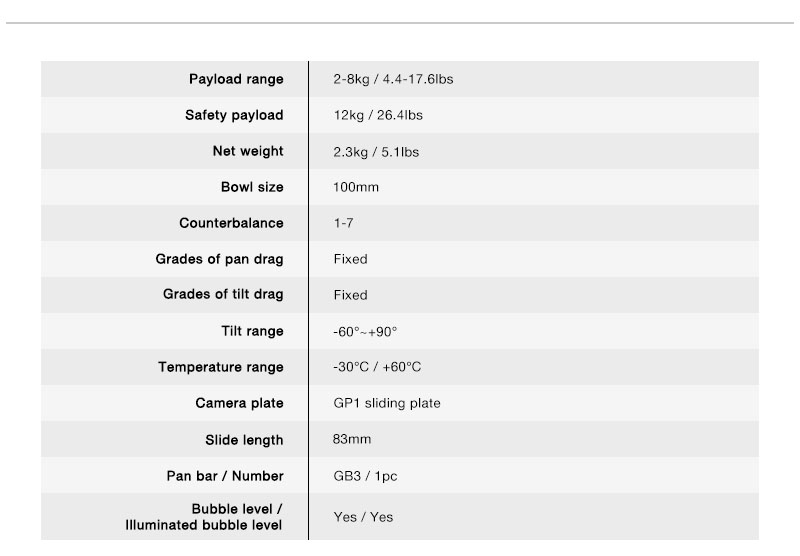

Tech spec


Downloads
